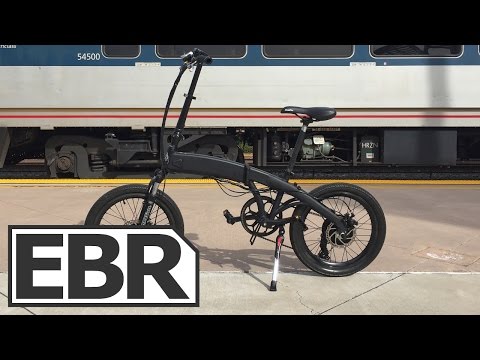

Motiv Stash ebikes

Summary

  • A comfortable folding electric bike with a basic suspension fork and larger diameter tires that help to dissipate bumps and cracks
  • Solid 350 watt internally geared hub motor from 8Fun paired with a 36 volt 9 amp hour battery Lithium-ion battery pack from Samsung
  • You get pedal assist and throttle mode with this ebike and you can turn pedal assist completely off or override it with the throttle
  • Nice aesthetic with matte black frame, black motor, spokes and rims and a battery that is protected and concealed in the main tube

Video Review


Introduction

Make:

Motiv

Model:

Stash

Price:

$ 1549.00

Body Position:

Upright

Suggested Use:

Urban, Commuting, Travel

Electric Bike Class:

Throttle on Demand (Class 2)
Learn more about Ebike classes

Warranty:

1 Year Comprehensive

Availability:

United States

Model Year:

2016

Electronic Details

Motor Type:

Rear-Mounted Geared Hub
Learn more about Ebike motors

Motor Nominal Output:

350 watts

Motor Brand:

8Fun

Battery Voltage:

36 volts

Battery Amp Hours:

9 ah

Battery Watt Hours:

324 wh

Battery Brand:

Samsung

Battery Chemistry:

Lithium-ion

Charge Time:

5 hours

Estimated Min Range:

15 miles ( 24 km )

Estimated Max Range:

25 miles ( 40 km )

Display Type:

Backlit, Monochrome, J-LCD by King-Meter

Readouts:

Battery Charge Level (1-4), Clock/Timer, Pedal Assist Level (0-5), Speed, Trip Meter, Odometer

Display Accessories:

Independent Button Pad on Left

Drive Mode:

Cadence Sensing Pedal Assist, Twist Throttle

Top Speed:

20 mph ( 32 kph )

Bicycle Details

Total Weight:

45 lbs ( 20.41 kg )

Battery Weight:

5 lbs ( 2.26 kg )

Motor Weight:

8 lbs ( 3.62 kg )

Frame Types:

Folding, Mid-Step

Frame Sizes:

 in ( 0 cm )

Frame Material:

Aluminum Alloy

Frame Colors:

Matte Black

Geometry Measurements:

11" Seat Tube, 24" Reach, 22" Standover Height, 62" Unfolded Length, 36" Folded Length, 26" Folded Height, 22" Folded Width

Frame Fork Details:

SR Suntour Top Gun, Basic Suspension (No Adjustments or Lockout)

Frame Rear Details:

160 mm

Attachment Points:

Rear Rack Bosses, Fender Bosses

Gearing Details:

7 Speed 1x7, Shimano Tourney TX, 14-34T

Shifter Details:

SIS Index

Cranks:

52 Tooth Chainring, 172 mm Prowheel Crank Arms

Pedals:

Wellgo, Folding Plastic Platform

Headset:

Neco, Sealed Bearing

Stem:

Folding

Handlebar:

Promax, Flat

Brake Details:

Tektro Novela Disc with 160 mm Rotors, Tektro Levers with Integrated Bell and Motor Inhibitor

Grips:

Motiv Brand (Velo), Flat Rubber with Lockers

Saddle:

Motiv Brand (Velo), Gel Comfort

Seat Post:

Aluminum Alloy

Seat Post Length:

470 mm

Seat Post Diameter:

27.2 mm

Rims:

Aluminum Alloy, Deep V, Black

Spokes:

Stainless Steel, 36, Black

Tire Brand:

Kenda, 20" x 2.125"

Wheel Sizes:

20 in ( 50.8 cm )

Tire Details:

Puncture Resistant

Tube Details:

Schrader Valve

Accessories:

Adjustable Length Kickstand, Rubber Protector Caps on Rear Axle, Optional Rear Carry Rack, Optional Plastic Fenders, Optional LED Lights (Front Integrated, Rear Battery Powered)

Other:

Locking Removable Battery Pack, Quick Release Front Wheel (Formula Skewer)
